Traxxas TRX-4M Platform Guide

The Traxxas TRX-4M is the truck that pulled me back into this hobby. When the guy at my local hobby shop said he always reached for his TRX4M when he just wanted to have fun, that one word — fun — made the decision for me. After more than a year of running mine on East Tennessee trails, I can confirm he was right.

Here’s what the platform is, what it’s built for, and how it grows as you get deeper into crawling.

What You Get Stock

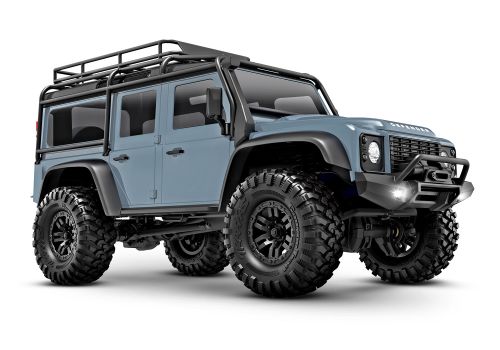

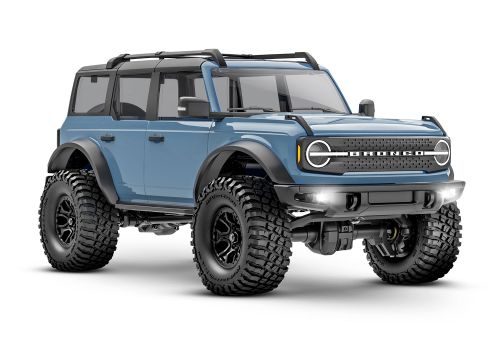

The TRX4M is a 1/18 scale crawler available in a few body styles — the Ford Bronco and Land Rover Defender are the main ones. Everything you need to run comes in the box: the truck, a 7.4V 1200mAh 2S LiPo, a USB-C charger, and a transmitter. Add AAs to the controller and you’re ready to go.

At 1/18 scale, the TRX4M is meaningfully larger than an SCX24 but genuinely compact compared to a full 1/10 scale rig. The portal axles — a design where the final drive gear sits at the wheel rather than the axle center — give it more ground clearance than a similarly-sized conventional crawler. That ground clearance is one of the main reasons the TRX4M handles outdoor terrain so well right out of the box.

What it does well from day one: Real outdoor terrain. Rocks, roots, loose trail surfaces, uneven forest floor — the TRX4M handles all of it noticeably better than a smaller micro crawler on comparable terrain. The larger tires, more ground clearance, and heavier weight all contribute. If you want to go outside on day one and actually crawl things, this is the right truck.

Where stock leaves room to improve: The servo, like most RTR crawlers, is where the budget got cut. It works, but it doesn’t hold as well as you’d want on the steepest technical terrain. The stock tires are decent but not aggressive enough for serious rock work. And the USB-C charger included in the box is slow — it’ll get your battery charged eventually, just not quickly. All three of these are fixable and well-documented.

The Upgrade Path

The TRX4M benefits significantly from Traxxas’ established parts and support infrastructure. Upgrades are well-documented, parts are widely available, and the community knowledge base is deep.

Start with tires. Unlike the SCX24, where I’d say brass first, the TRX4M is capable enough stock that tires are the upgrade with the most immediate outdoor trail impact. Pro-Line 1.0” tires in the TRX4M diameter are the standard reference point. The Hyrax is the go-to for general trail use. The BFGoodrich KM3 or Mud Terrain variants are worth considering if your trails lean toward dirt and loose terrain. Both fit the stock wheels without modification.

Second: servo. The Traxxas 2215 micro servo is the community-standard upgrade. More torque, better hold on steep terrain, noticeably more confidence on technical climbs. Third-party options from SG and Injora also fit with the right servo horn adapter if you’d rather save a few dollars.

Third: brass weight. Traxxas sells official brass differential covers and portal brass for the TRX4M. Injora makes comparable parts at a lower price. The weight drops your center of gravity and adds durability to higher-wear areas simultaneously — two good things at once.

After that: Extra battery packs are the best quality-of-life upgrade once the truck is performing well. The Traxxas ID battery system makes this easy — pick up a second 1200mAh pack, or step up to a 1500mAh for more runtime. On a good trail day, having two packs and a real charger at home is absolutely the move.

The Traxxas Ecosystem

Owning a Traxxas truck means you’re buying into an ecosystem as much as a vehicle. Traxxas has been doing this for a long time, has retail presence in most hobby shops, and offers parts availability and customer support that some brands genuinely can’t match.

If something breaks on a trail, there’s a reasonable chance your local shop has the part in stock. If not, Traxxas’ online parts infrastructure is excellent. That matters when you’re new and something unexpected happens.

The flip side is that Traxxas parts can be more expensive than third-party equivalents, and the ID battery and charger system means staying in the ecosystem if you want to keep charging simple. For most beginners, that’s a reasonable tradeoff. The support and simplicity are genuinely valuable when you don’t have a parts-bin full of spares to draw on.

Who the TRX4M Is For

If outdoor trail crawling is your primary use case, this is the right first truck. It’s capable enough stock to be genuinely fun on real terrain, and it upgrades in a clear, well-supported sequence as your skills and interest grow.

Where I’d point you elsewhere: if budget is your main deciding factor, or you’re primarily interested in indoor crawling, the SCX24 is the better starting point. The TRX4M costs a bit more, and its advantage shows most clearly outdoors — running it primarily indoors means you’re paying for capability you’re not using.

But if you want to find a trail, spend an afternoon outside, and run something that challenges both the truck and your driving in equal measure — the TRX4M is where I’d start. It’s the truck I reach for when I just want to have fun. That recommendation hasn’t changed.

---
